Professional Gearbox Lifting for Irish Workshops

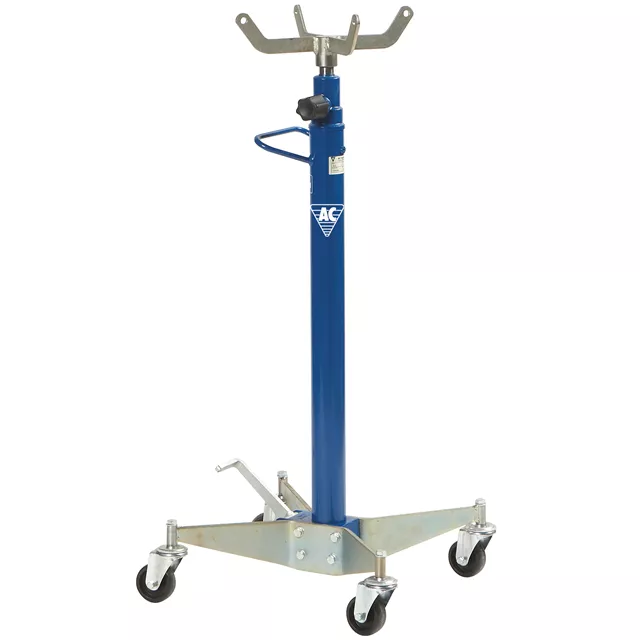

The AC Hydraulic VL3 is a staple for professional garages and home workshops throughout Ireland and Northern Ireland. With a lifting capacity of 300kg, this hydraulic transmission jack provides the perfect balance of strength and precision for automotive repairs. Whether you are working on a standard passenger car or a small van, the VL3 ensures the job is done safely and efficiently.

Hands-Free Pumping for Maximum Precision

One of the standout features of the VL3 is its foot-pedal operated pump. This design allows technicians to keep both hands on the gearbox or transmission during the lifting process, ensuring perfect alignment every time. The manual lowering mechanism is equipped with a dead man’s release, giving the operator full control over the descent speed and preventing accidental drops.

Durable Construction and Smooth Mobility

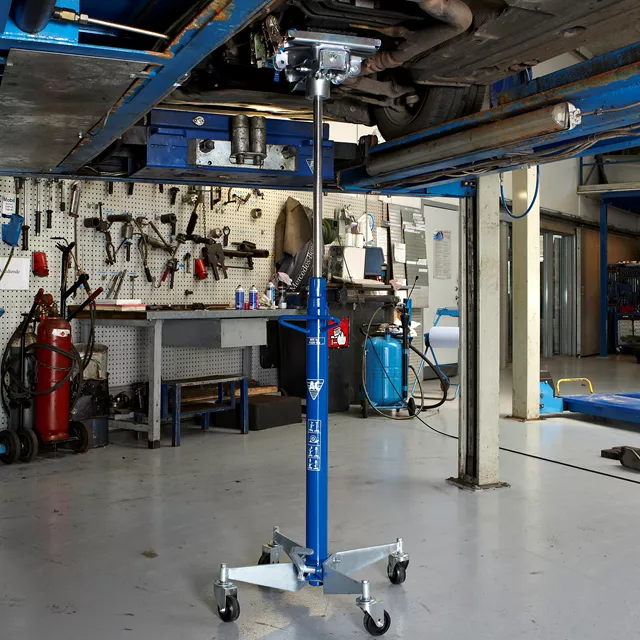

AC Hydraulic is world-renowned for quality, and the VL3 is no exception. It features a hard chromium-plated piston rod and pump piston, providing excellent protection against the harsh conditions of a commercial workshop. For ease of movement, the unit is mounted on four robust swivel castors, making it simple to position the jack exactly where it is needed under a vehicle lift.

Versatile Application and Safety

While optimized for transmissions, the VL3 is also an excellent tool for mounting springs, fuel tanks, and exhaust pipes. Safety is built-in with a safety overload valve that prevents the jack from being used beyond its 300kg capacity. This ensures both the operator and the vehicle remain protected during heavy lifting tasks.

Key Product Features

• 300kg Lifting Capacity:Specifically engineered for the safe removal and installation of gearboxes in passenger cars and small vans.
• Hands-Free Operation:The foot-pedal operated pump allows the mechanic to use both hands for precise alignment and handling of the transmission.
• Precise Control:Includes a manual "dead man’s release" for optimum safety, ensuring controlled and steady lowering of the load.
• Built for Longevity:Featuring a hard chromium-plated piston rod and pump piston to resist corrosion and wear in busy workshop environments.
• Easy Maneuverability:Equipped with four sturdy swivel castors for smooth movement across garage floors, even when under load.
• Danish Engineering:High-quality construction from AC Hydraulic, backed by a 10-year warranty on the frame and 3 years on the hydraulics.

AC Hydraulic Transmission Jack Comparison: VL3 vs VL6 vs VL10

Choosing the right transmission jack depends on the specific weight of the components you handle. While all three models feature identical Danish build quality, their lifting capacities and physical dimensions are tailored for different workshop needs.

Key Differences for Professionals

• Capacity and Application:The VL3 is optimized for standard car gearboxes. The VL6 is the versatile choice for SUVs and small vans, while the VL10 is a heavy-duty unit designed for large commercial vans and 4x4 transmissions.
• Manoeuvrability:The VL3 and VL6 utilize 80mm castors and a 530mm width for tight spaces. The VL10 uses larger 125mm castors and a wider 550mm base to provide the stability required for 1-tonne loads.
• Lifting Reach:The VL10 provides the highest reach at 2000mm, whereas the VL3 and VL6 reach 1965mm. All models feature the same high-quality pedal-operated pump for hands-free positioning.

The Verdict

If you primarily service passenger cars, the VL3 is highly efficient. For a mix of cars and SUVs, the VL6 is the most popular "all-rounder" in Ireland. For workshops specializing in light commercials (Transits, Sprinters, etc.), the VL10 is the required professional standard.

Frequently Asked Questions (FAQ)

What is the lifting capacity of the AC Hydraulic VL3?

The VL3 is designed with a lifting capacity of 300kg (0.3 tonnes). This makes it the perfect choice for handling gearboxes and transmissions in standard passenger cars and small vehicles.

How does the VL3 compare to the VL6?

While both share the same premium Danish build quality and reach, the VL3 is rated for 300kg, whereas the VL6 is rated for 600kg. The VL3 is lighter and ideal for workshops focusing primarily on smaller passenger vehicles.

What is the maximum lifting height of the VL3?

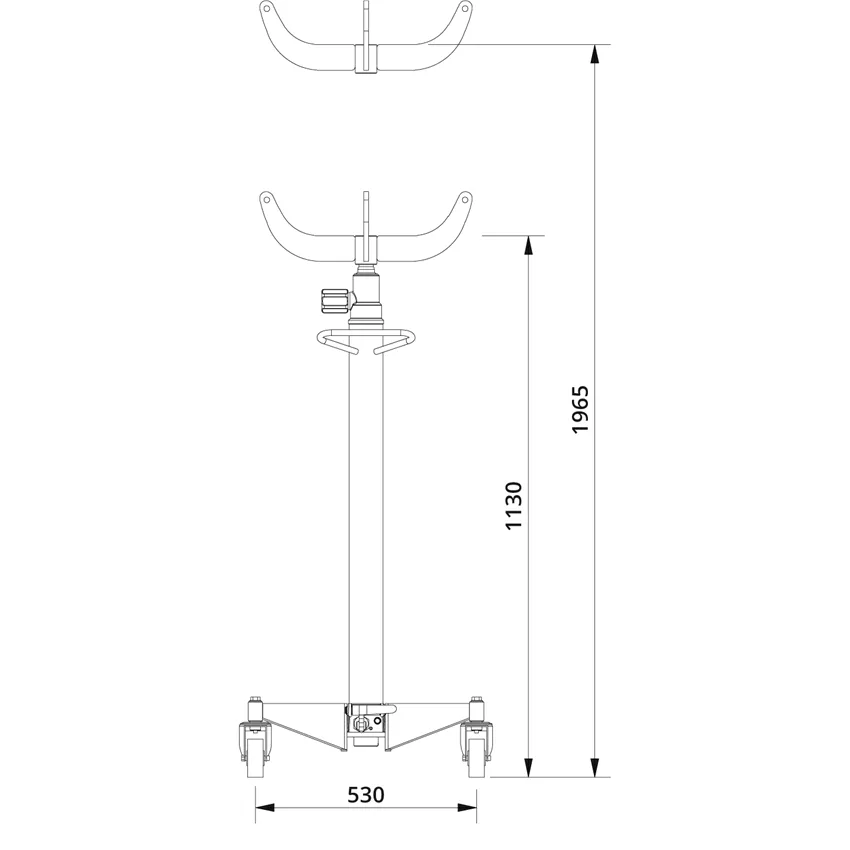

The VL3 offers an impressive reach, with a minimum height of 1130mm and a maximum lifting height of 1965mm, making it suitable for use under almost any professional vehicle hoist.

Does the VL3 allow for hands-free operation?

Yes. The VL3 features a pedal-operated hydraulic pump. This allows the technician to use both hands to steady and align the transmission or fuel tank while lifting.

Is the lowering speed adjustable?

The unit features a manual "dead man’s release" valve. This provides stepless, precise control over the lowering speed, ensuring the load descends safely and exactly where you need it.

Can the VL3 be used for other workshop tasks?

Absolutely. Beyond transmissions, the VL3 is highly versatile and frequently used for mounting exhaust systems, fuel tanks, and suspension springs.

What kind of warranty is provided?

AC Hydraulic provides a 10-year warranty on the steel frame and chassis, along with a 3-year warranty on the hydraulic pump and cylinder system, offering long-term peace of mind for your investment.

Where is the VL3 manufactured?

Like all AC Hydraulic products, the VL3 is 100% made in Denmark, ensuring the highest standards of engineering and durability.
