Description

Powerful Professional 3.5T Full Rise Scissor Lift

The EAE EE-6503 is built to provide reliable lifting for passenger cars and light commercial vehicles with a 3,500kg capacity. Its robust design features a heavy-duty scissor structure and extendable platforms on one side, allowing it to safely accommodate vehicles of varying wheelbases. With a maximum lifting height of 2130mm, it offers technicians ample vertical space for comfortable under-vehicle access.

Advanced Safety and Precision Engineering

Safety is integrated into every component of the EE-6503. The lift is equipped with an infrared level protection system to ensure perfectly synchronized platform movement. For mechanical security, it utilizes pneumatic released safety locks and durable cylinders in each column fitted with anti-surge valves. A safety descent alarming buzzer and a max height limit switch come standard to protect both the operator and the vehicle.

Efficient Design for Modern Workshops

Designed for high-productivity environments, the EE-6503 features a fast lifting time of approximately 40 seconds. The 24V control system is housed in a professional console, ensuring safe and intuitive operation. To ensure a long service life in busy Irish workshops, the unit is finished with a durable powder coating and features self-lubricated bushings and bearings.

Key Product Features

• 3,500kg Lifting Capacity: Engineered with a robust 3.5-tonne capacity, making it the ideal professional solution for passenger cars and light commercial vehicles

• Space-Saving Recessed Installation: Designed specifically for in-ground recessed mounting, providing a completely flush workshop floor when the lift is fully lowered

• High-Rise Vertical Clearance: Delivers a maximum lifting height of 2130mm, ensuring technicians have ample space for comfortable and efficient under-vehicle maintenance

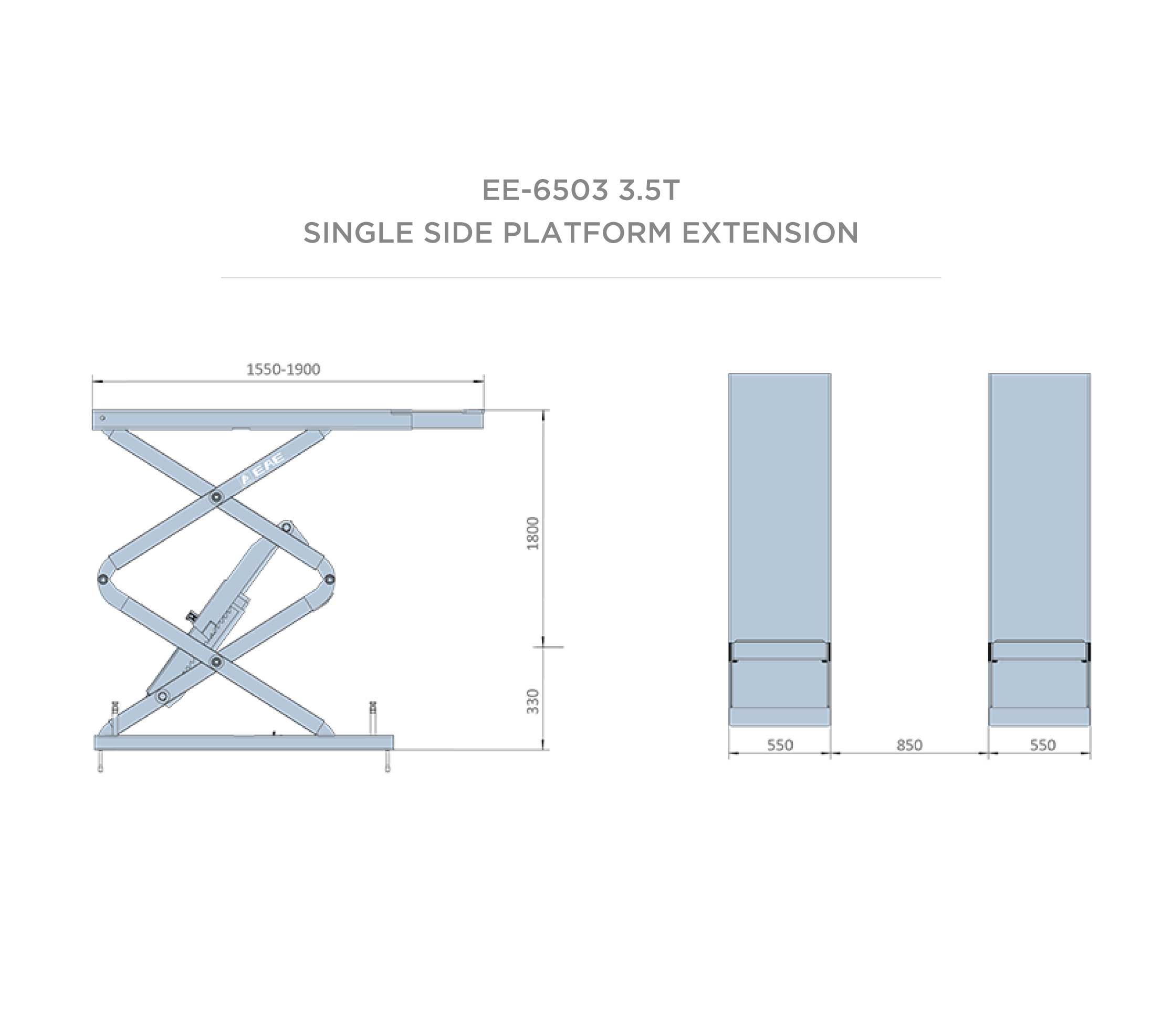

• Extendable One-Side Platforms: Features flexible platforms that extend from 1550mm to 1990mm, allowing your workshop to safely service vehicles with varying wheelbases

• Infrared Level Protection: Equipped with an advanced infrared synchronization system to ensure both platforms remain perfectly level during every lift

• Dual Safety Locking System: Utilizes pneumatic released mechanical safety locks combined with crash valves for maximum operator and vehicle security

• Anti-Surge Protection: Each high-quality cylinder is fitted with anti-surge valves to prevent accidental rapid descent in the event of a hydraulic failure

• Industrial 24 Volt Control System: Features a professional-grade 24V control box for safe, intuitive operation in busy Irish workshop environments

• Safety Alarm & Limit Switches: Includes a built-in safety descent alarming buzzer and a max height limit switch to prevent overhead or operator accidents

• Durable Maintenance-Free Build: Constructed with self-lubricated bushings, high-quality bearings, and a durable powder-coated finish for a long, reliable service life

• CE Certified: Fully compliant with European safety and quality standards.

• Warranty: Supported by EAE’s 5/2/2 warranty program for long-term reliability.
