Pasquin P18-30 Air Hydraulic Jack
The Pasquin P18-30 is a portable, high-performance air hydraulic jack specifically designed for the professional Irish automotive and transport sectors. This dual-stage jack offers a lifting capacity of 30 tons to 18 tons, providing the perfect balance of power and mobility for servicing buses, coaches, and commercial vehicles. With a minimum entry height of 150 mm, it is engineered to access modern chassis while maintaining a stable and secure lift for heavy-duty applications.
The Pasquin P18-30 (Portable) model is the ideal choice for workshops in Dublin, Cork, and across Ireland that require a mobile lifting solution without sacrificing capacity. Its lightweight design at only 29 kg makes it one of the most maneuverable jacks in its class, perfect for rapid workshop use or on-site assistance.
Efficient Dual-Stage Lifting The P18-30 features a telescopic two-stage piston. The first stage provides a powerful 30-ton lift, while the second stage offers 18 tons of capacity as the jack extends. This dual-action design ensures that you have the required force to lift heavy axles safely through their full range of motion.

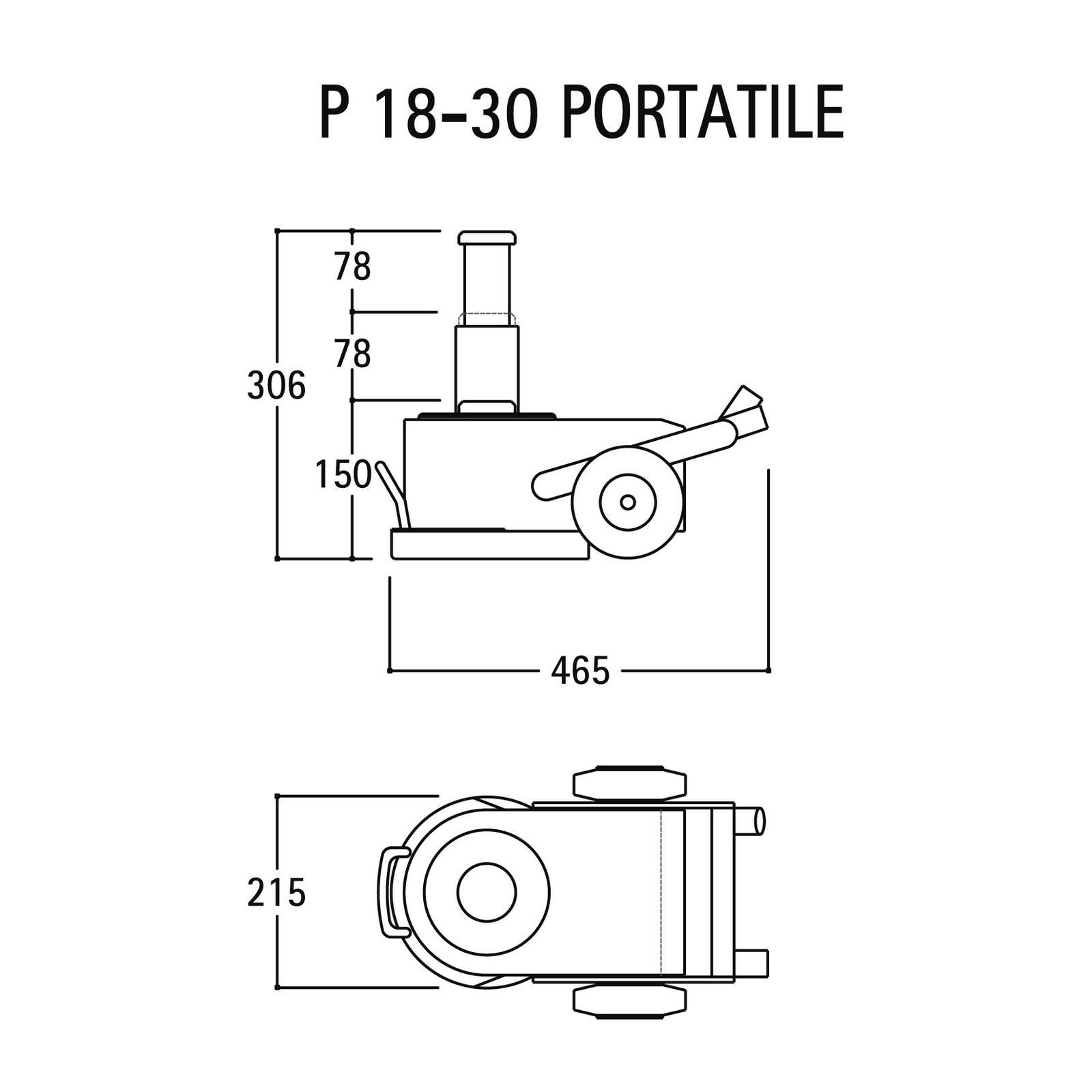

Compact and Durable Engineering Built with premium Italian materials, the P18-30 is designed to withstand the rigors of a busy garage. It operates at a standard working pressure of 9–12 atm. Its compact body length of 465 mm and narrow width of 215 mm allow it to be positioned easily in cramped conditions where larger jacks would struggle to fit.
Key Product Features
- Dual-Stage Lifting: Versatile 30t and 18t capacities for various commercial vehicle types.
- Ultra-Portable Design: At just 29 kg, it is easily transported for mobile service or moved between workshop bays.
- Optimized Entry Height: 150 mm minimum height suitable for a wide range of trucks and coaches.
- Impressive Extension: Maximum lifting height of 306 mm for excellent service clearance.
- Industrial Build Quality: Italian-made with high-grade steel for long-term reliability in Irish workshops.
- Compact Footprint: Measuring only 465 mm in length for superior maneuverability.
Comparison Table: Pasquin Professional Series
| Feature | Pasquin P18-30 | Pasquin P103 | Pasquin P182C | Pasquin P152C | Pasquin P502 |
|---|---|---|---|---|---|
| Stages | 2 | 3 | 2 | 2 | 2 |
| Max Capacity | 30 Tons | 33 Tons | 30 Tons | 30 Tons | 50 Tons |
| Min. Height | 150 mm | 120 mm | 150 mm | 175 mm | 175 mm |
| Max. Height | 306 mm | 285 mm | 307 mm | 364 mm | 430 mm |
| Weight | 29 kg | 44 kg | 38 kg | 39 kg | 51 kg |
Technical Specifications (P18-30)
| Feature | Specification |
|---|---|
| Lifting Capacity: | 30 Tons / 18 Tons |
| Max. Height: | 306 mm |
| Min. Height: | 150 mm |
| Working Air Pressure: | 9 – 12 atm |
| Weight: | 29 kg |
