Pasquin P102 Air Hydraulic Jack(Portable Truck Jack)
The Pasquin P102 is an ultra-compact and lightweight air hydraulic jack, engineered for the specific demands of mobile service and heavy-duty workshops across Ireland. Designed for maximum portability, this dual-stage jack provides a lifting capacity ranging from 30 tons to 15 tons, making it a powerhouse for lifting agricultural machinery, plant equipment, and commercial vehicles. With a minimum height of 175 mm and a total weight of just 28 kg, it offers a perfect combination of strength and maneuverability.
The Pasquin P102 is the go-to solution for Irish mobile technicians and garage owners who need reliable Italian engineering in a travel-friendly format. Whether performing roadside repairs or navigating a busy workshop floor, its compact dimensions and robust build ensure professional results every time.
Two-Stage Performance The P102 utilizes a high-efficiency telescopic system. Stage 1 delivers 30 tons of lifting power for heavy initial lifts, while Stage 2 provides 15 tons of capacity for extended height requirements. This versatility ensures you have the right force available for various axle heights and load weights.
Built for Mobility Operating at a standard working air pressure of 9–12 atm, the P102 is compatible with most industrial compressor setups. Its small footprint—only 400 mm in length and 215 mm in width—allows for easy positioning in restricted spaces where standard jacks simply won't fit.
Key Product Features
- Dual-Stage Lifting: 30t and 15t capacities for comprehensive vehicle servicing.
- Maximum Portability: Weighs only 28 kg, making it ideal for mobile service vans.
- Extended Reach: Features a maximum lifting height of 364 mm.
- Compact Chassis: Short 400 mm body length for superior maneuverability in tight bays.
- Standard Pneumatics: Optimized for 9–12 atm workshop air pressure.
- Italian Reliability: 100% manufactured in Italy to the highest industrial safety standards.
Pasquin Portable Series: Model Comparison
| Feature | Pasquin P102 | Pasquin P18-30 | Pasquin P200 |
|---|---|---|---|
| Lifting Stages | 2 Stages | 2 Stages | 1 Stage |
| Max. Capacity | 30 Tons | 30 Tons | 25 Tons |
| Capacity per Stage | 30t / 15t | 30t / 18t | 25t (Single) |
| Minimum Height | 175 mm | 150 mm | 235 mm |
| Maximum Height | 364 mm | 306 mm | 475 mm |
| Unit Weight | 28 kg | 29 kg | 28 kg |
| Air Pressure | 9–12 atm | 9–12 atm | 8.5–12 atm |

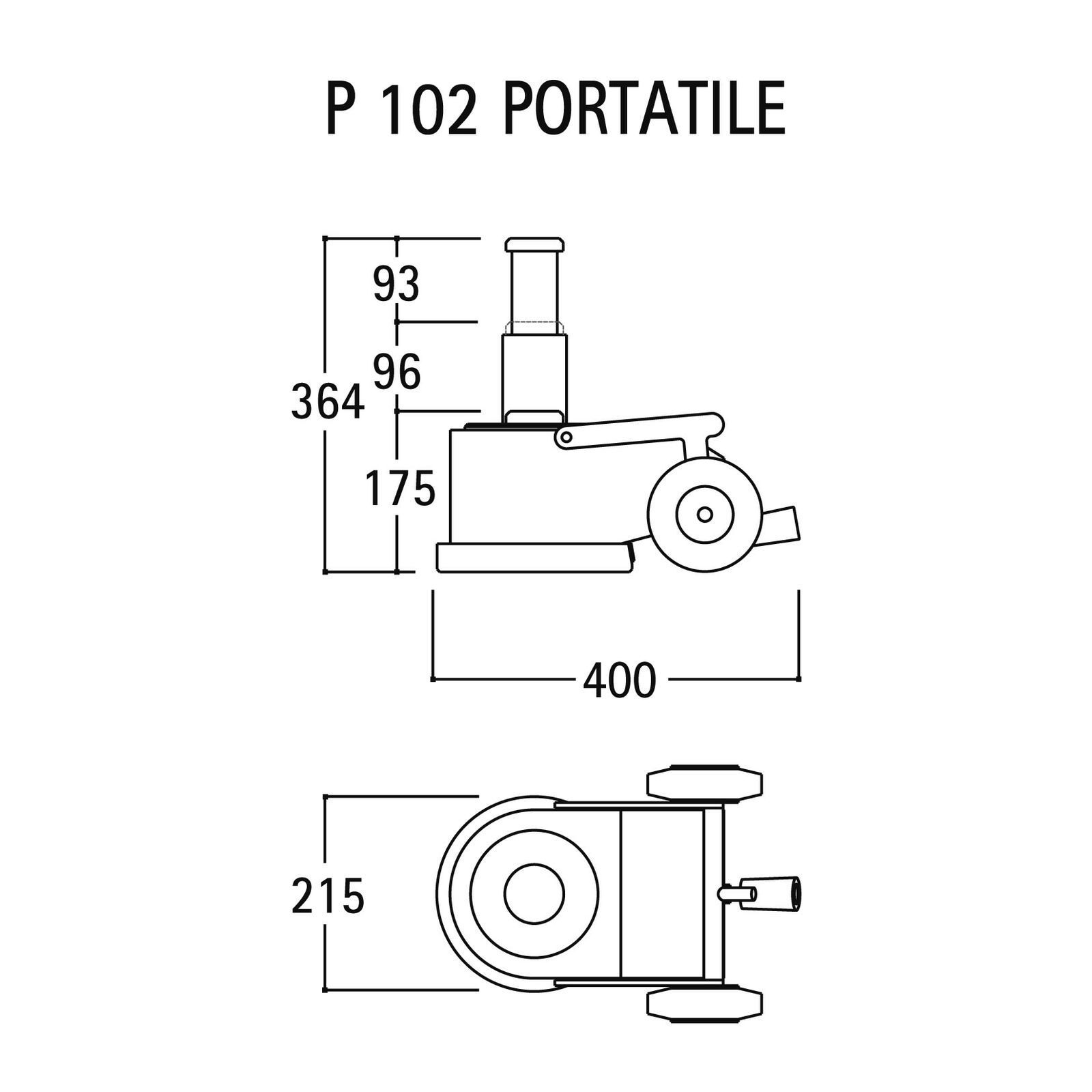

Technical Specifications (P102)
| Feature | Specification |
|---|---|
| Lifting Capacity: | 30 Tons / 15 Tons |
| Max. Height: | 364 mm |
| Min. Height: | 175 mm |
| Working Air Pressure: | 9 – 12 atm |
| Weight: | 28 kg |
| Body Length: | 400 mm |
Frequently Asked Questions (P102)
1. Is the P102 suitable for agricultural tractors?
Yes. With a maximum lifting height of 364mm, the P102 is a favorite for Irish farmers and agri-mechanics who need a portable jack that can reach higher chassis points.
2. What is the weight of the P102?
The P102 is ultra-lightweight at just 28kg, making it the lightest 30-ton professional jack in the portable range for easy transport and maneuvering.
3. What are the lifting capacities for each stage?
The P102 features a dual-stage system: Stage 1 lifts 30 tons, and Stage 2 handles 15 tons, allowing for versatile lifting across different vehicle weights.
4. Can I use this jack in tight spaces?
Absolutely. The P102 has an incredibly short body length of only 400mm, allowing it to be positioned in tight workshop bays or under cramped agricultural machinery.
5. What air pressure range is required?
The P102 is optimized for a working air pressure of 9 to 12 atm, fitting perfectly into standard commercial workshop and mobile service setups.
