Description
Pasquin P182C Air Hydraulic Jack
Experience uncompromising power and Italian precision with the Pasquin P182C Air Hydraulic Jack. Engineered for the rigorous demands of commercial garages and industrial maintenance, this two-stage jack is the ultimate solution for heavy-vehicle lifting.
Whether you are servicing HGVs, agricultural machinery, or plant equipment, the P 182 C delivers a seamless lifting experience. The first stage provides a massive 30-ton capacity, while the second stage offers 18 tons for extended reach, reaching a maximum height of 306mm.
Despite its heavy-duty performance, the P 182 C remains highly portable at just 37kg, featuring large robust wheels and an ergonomic long handle for precise positioning under chassis. Operating at a standard 9–12 atm working pressure, it integrates perfectly with existing workshop compressed air systems. Built to last, Pasquin jacks are synonymous with safety and longevity in the most challenging professional environments.
Key Product Features
-
Dual-Stage Lifting: Versatile capacity with 30 tons (Stage 1) and 18 tons (Stage 2).
-
Low Profile Design: 150mm minimum height allows for easy access under low-clearance vehicles.
-
High-Pressure Performance: Optimized for standard industrial air systems (9–12 atm).
-
Ergonomic Portability: Compact footprint and 37kg weight make it easy to maneuver across workshop floors.
-
Italian Engineering: Manufactured by Pasquin for superior reliability and long-term professional use.
-
Extended Reach: Total lifting height of up to 306mm for versatile application.
Pasquin Professional Series: Model Comparison
| Model | Capacity (Stages) | Min. Height | Max. Height | Weight | Ideal Application |
|---|---|---|---|---|---|
| P182C | 30 / 18 Tons | 150 mm | 307 mm | 38 kg | Extra-low profile (Coaches/Low Trucks) |
| P152C | 30 / 15 Tons | 175 mm | 364 mm | 39 kg | Standard HGVs & general workshop use |
| P103 | 33 / 18 / 10 Tons | 120 mm | 225 mm* | 44 kg | Specialist low-profile 3-stage lifting |
| P502 | 50 / 25 Tons | 210 mm | 430 mm | 74 kg | Heavy-duty agricultural & plant machinery |
| P250C | 50 / 25 Tons | 230 mm | 470 mm | 42 kg | Portable high-capacity lifting for field service |
Which Pasquin Jack Should You Choose?
1. The Low-Profile Specialists (P182C vs. P103)
-
If you primarily service buses, coaches, and low-slung trucks, choose the P182C. Its 150mm entry point is perfect for modern aerodynamic vehicle designs.
-
If you need even more clearance, the P103 is a 3-stage powerhouse with a tiny 120mm minimum height, making it one of the lowest professional jacks on the market.
2. The Heavy Hitters (P502 vs. P250C)
-
For heavy plant and construction machinery, the P502 offers the best stability and reach, though it is a heavier unit at 74kg.
-
The P250C is the "Mobile Mechanic's" version of the 50-ton lift. It gives you the same 50/25 ton capacity but in a much lighter 42kg frame, making it easier to transport for on-site repairs.
3. The All-Rounder (P152C)
-
The P152C remains the standard for most Irish commercial garages. It offers a higher lift (364mm) than the 182 C, provided you don't need that extra-low 150mm entry height.

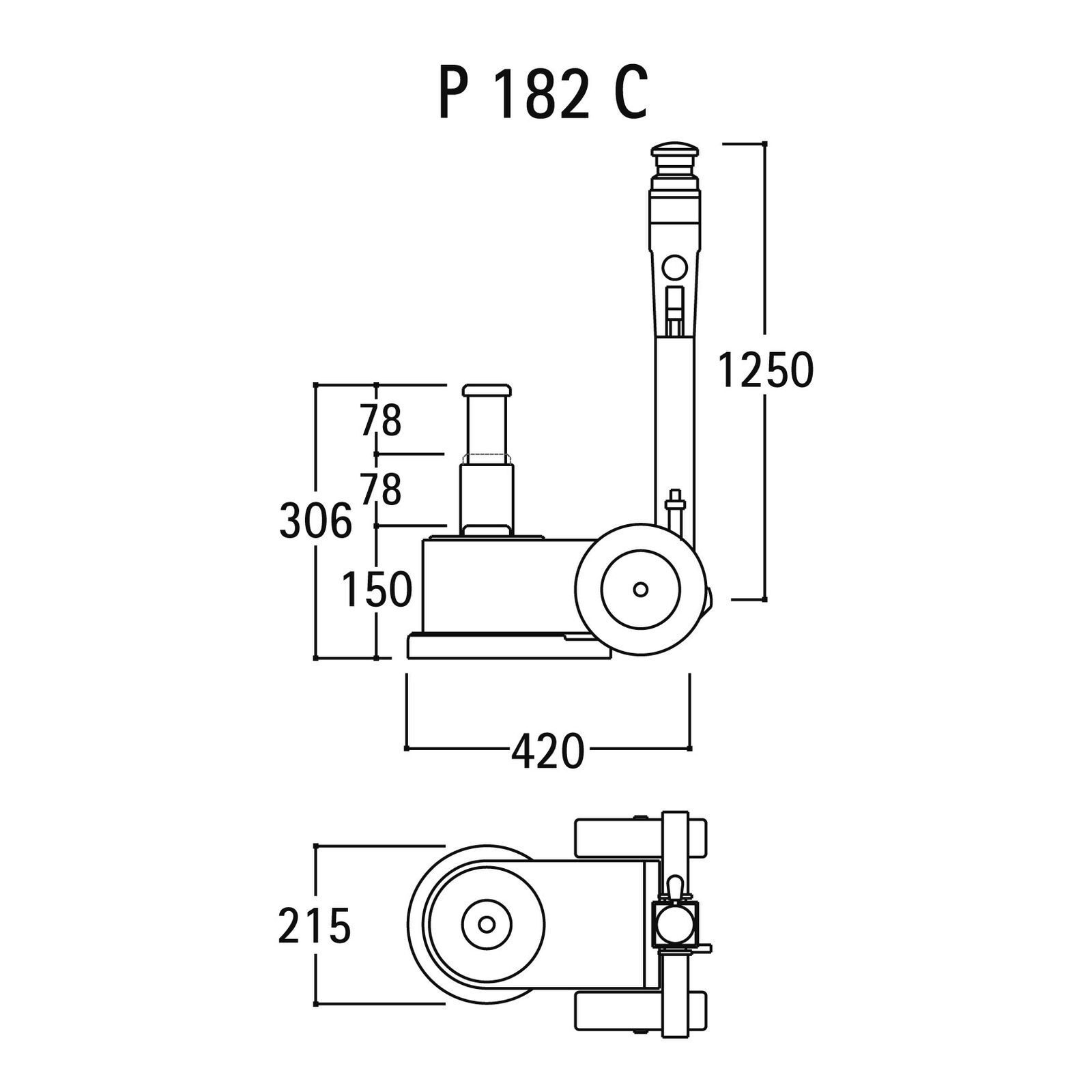

Technical Specifications (P182C)
| Feature | Specification |
|---|---|
| Lifting Capacity: | 30 Tons / 18 Tons |
| Max. Height: | 306mm |
| Min. Height: | 150mm |
| Working Air Pressure: | 9 – 12 atm |
| Weight: | 32kg |
Frequently Asked Questions
Q: Is the Pasquin P182C suitable for roadside recovery?
A: Yes. At 37kg, it is portable enough for service vans, though it requires a compressed air source (9-12 atm) to operate.
Q: What is the benefit of a 2-stage cylinder?
A: A 2-stage cylinder allows for a lower starting height while still achieving a high maximum lift. For the P182C, Stage 1 lifts 30 tons and Stage 2 lifts 18 tons.
Q: Does the jack come with height extensions?
A: Yes, Pasquin jacks typically include spacers to increase the maximum reach beyond the standard stroke for higher chassis vehicles.
Q: Where are Pasquin jacks manufactured?
A: Pasquin jacks are 100% Italian-engineered and manufactured, ensuring high-grade materials and long-term reliability for industrial use.
