Description

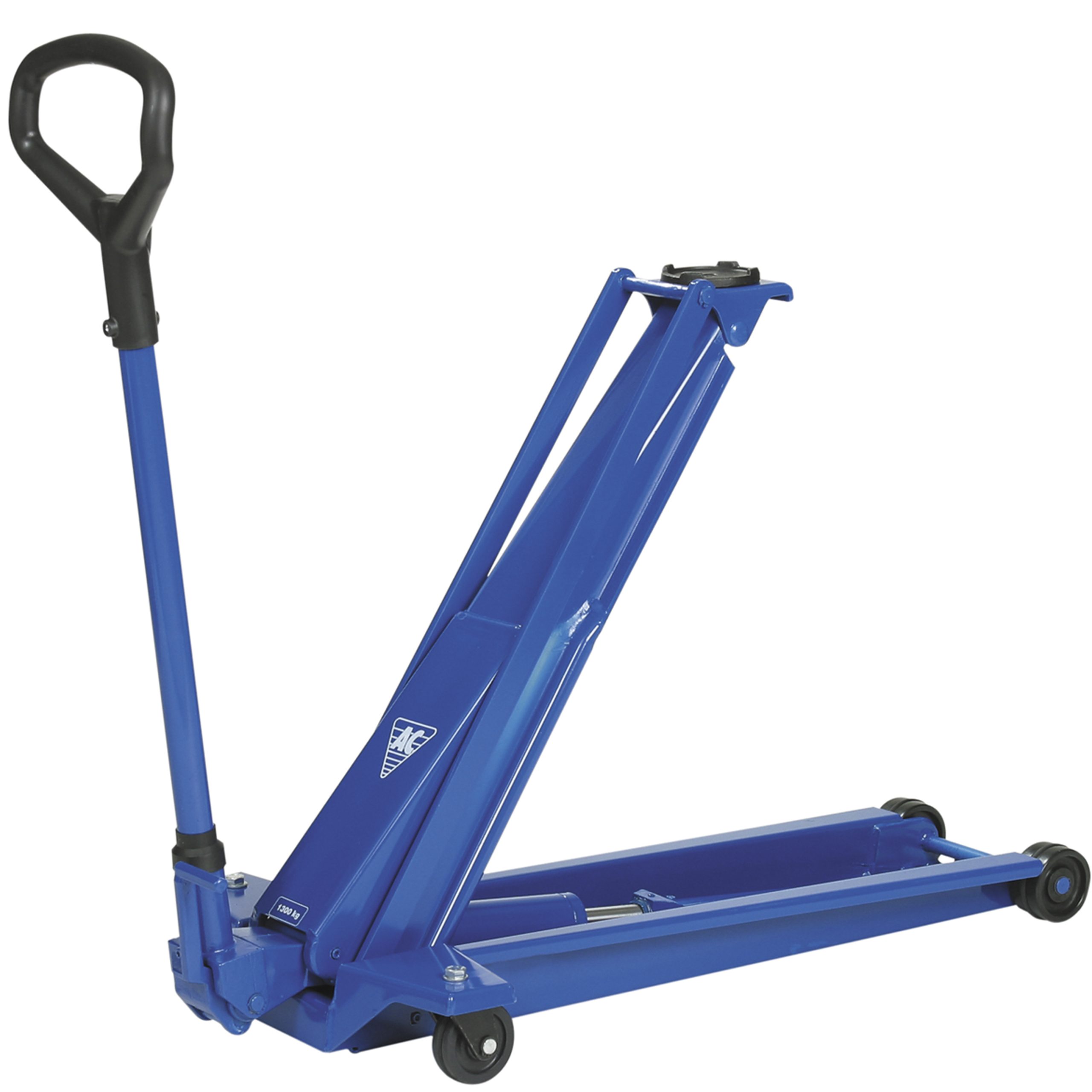

The Ultimate High-Lifter for Low-Clearance Vehicles (DK13HLQ)

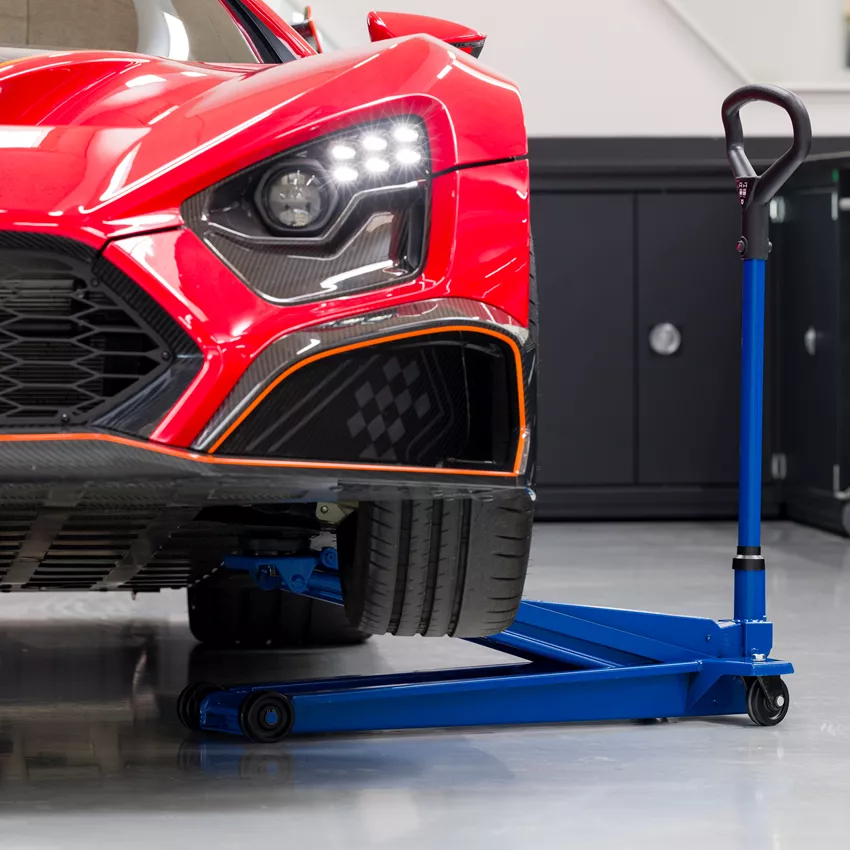

The AC Hydraulic DK13HLQ is a high-lifter engineered for precision and extreme long reach. Specifically designed for vehicles with low clearance, this jack combines a slim profile with a massive lifting range, making it a staple for workshops dealing with sports cars, tuned vehicles, and modern passenger cars.

Extended Reach and Quick Operation

Efficiency is at the heart of the DK13HLQ. It is fitted with a quick-lift pedal, allowing you to reach the vehicle's lifting point almost instantly. The long frame length of 940mm ensures you can reach deep under the chassis, while the impressive 735mm max height provides superior clearance for complex underbody work.

Safety and Precise Control

Lifting high requires absolute stability. The DK13HLQ features a wide and robust frame manufactured from high-strength steel. For operator safety, it includes a manual "dead man’s release" for precise and safe control during lowering and a built-in safety overload valve to prevent lifting beyond its rated capacity.

Ergonomics and Surface Protection

Keep your garage floor pristine with AC Hydraulic’s signature noiseless wheels. The polyurethane central O-ring provides maximum surface protection while allowing for smooth, quiet movement. The ergonomically designed handle ensures every operation is positive, safe, and comfortable for the user.

Key Product Features

• 1.3 Tonne Capacity: Specifically rated for precision lifting of passenger cars.
• Ultra-Low Profile: Features a very low minimum height of only 80mm (3.15 in).
• Extraordinary Lift Range: Massive extension up to 735mm.
• Quick-Lift Pedal: Provides fast reach to the lifting point for improved workshop efficiency.
• Long Reach Design: 940mm frame length allows for access to difficult, deep lifting points.
• Safety Built-In: Manual dead man’s release and safety overload valve for optimum security.
• Quiet Mobility: Noiseless wheels with polyurethane O-rings protect expensive floor coatings.

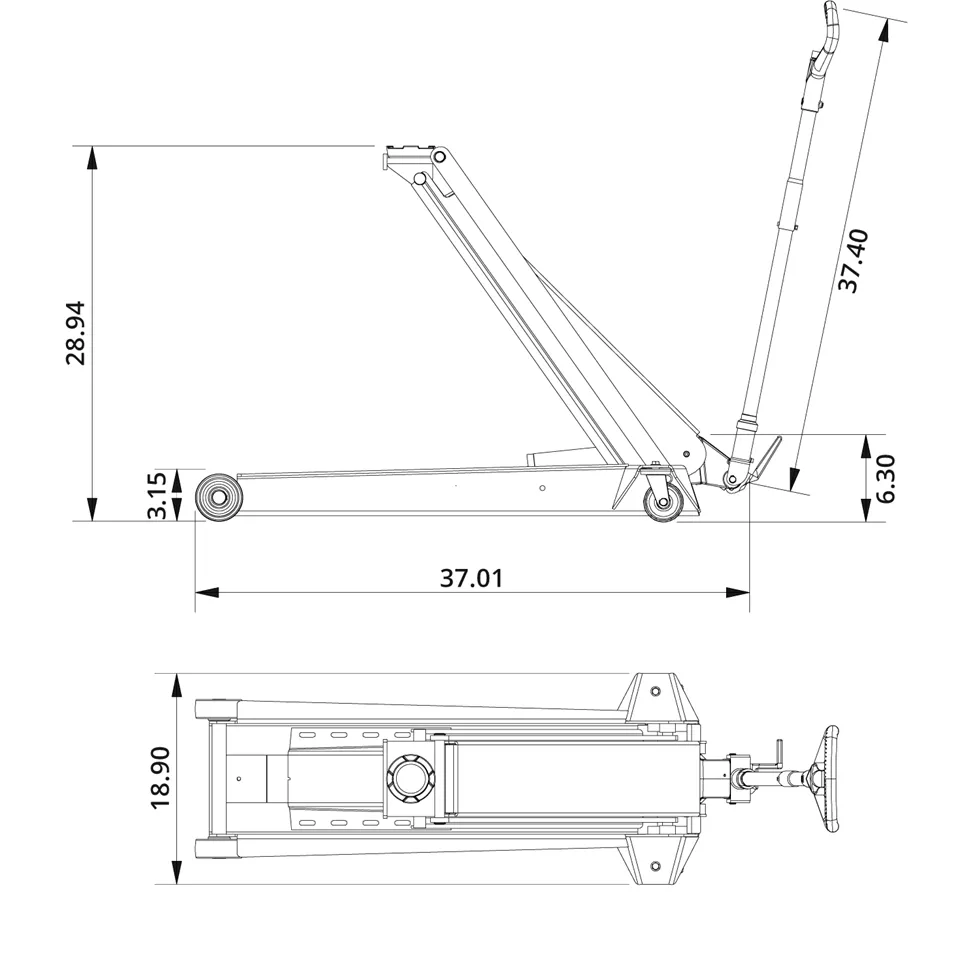

Technical Specifications
