Description

Industrial Grade 6 Tonne Lifting Power for Transport and Heavy Plant

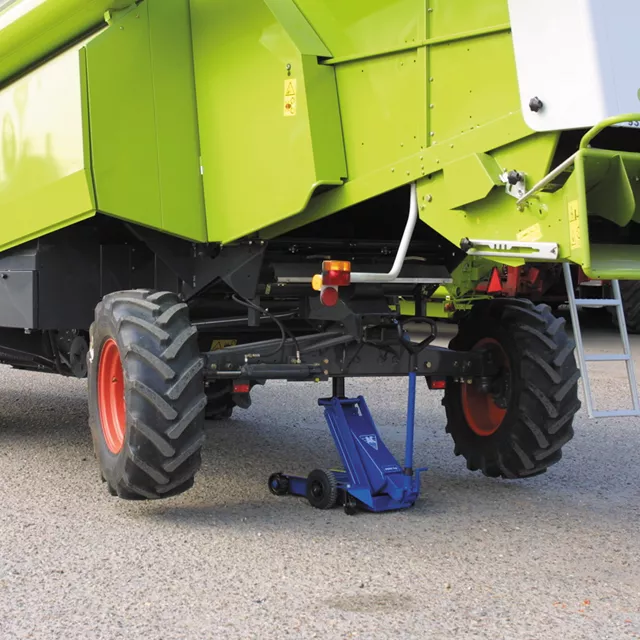

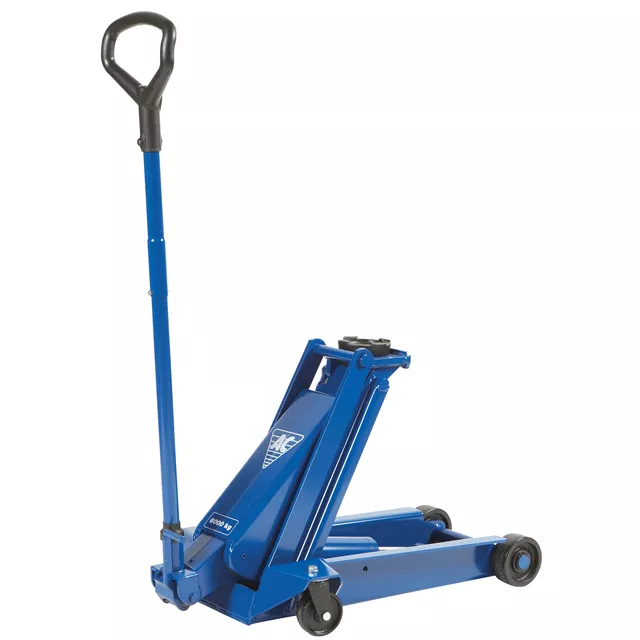

The AC Hydraulic DK60Q represents the gold standard in heavy vehicle lifting, specifically engineered to satisfy the demands of fleet managers, heavy transport mechanics, and agricultural engineers throughout Ireland. Delivering a true 6.0 tonne (6,000 kg) capacity, this industrial trolley jack is perfectly optimized to elevate heavy-duty commercial trucks, municipal transit fleets, modern farm tractors, and rugged contractors' earthmoving plant. Its wide, robust frame is welded from high-strength structural steel, providing a completely rigid platform that eliminates frame distortion or flexing under the most severe loads.

Low Profile Entry and High Lift Clearance Range

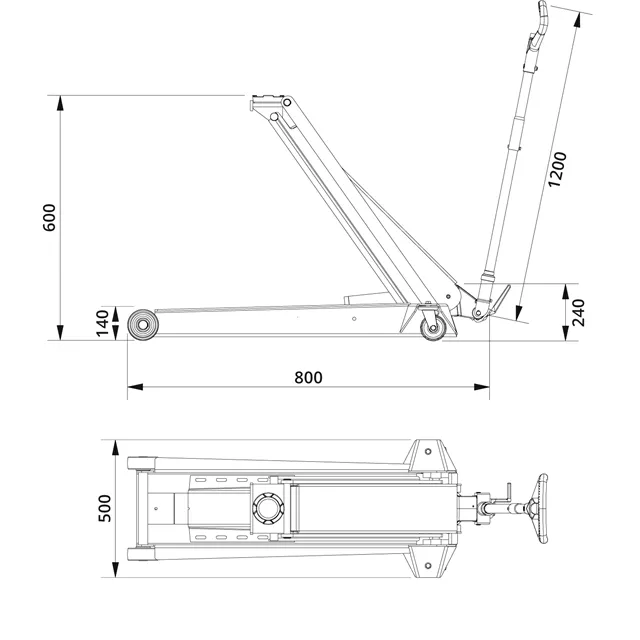

Managing diverse commercial vehicle weights requires versatile workshop floor equipment. The AC Hydraulic DK60Q features a low minimum profile height of just 140 mm, which allows it to glide seamlessly beneath low-slung commercial axles, heavy machinery trailers, and agricultural hitch points. The integrated high-pressure hydraulic unit extends smoothly to provide a maximum height of 600 mm. This expansive vertical reach provides workshop technicians with ample space to carry out safe brake overhauls, heavy wheel changes, suspension rebuilds, and general undercarriage servicing.

Advanced Manual Safety Controls and Failure Prevention

When operating under 6-tonne industrial loads, uncompromising workshop safety is a strict necessity. The DK60Q is engineered with a high-accuracy manual dead man's release valve within the steering handle assembly, granting operators total control over the lowering speed. This mechanism prevents sudden or hazardous vehicle drops, ensuring smooth, controlled descent. Furthermore, a built-in safety overload valve completely blocks the lifting stroke if the load surpasses the 6,000 kg certified parameter, keeping your team and your workshop assets completely safe.

Ergonomic Layout and Rapid Vehicle Engagement

To optimize workflow speed inside commercial workshops and transport bays, the DK60Q incorporates a high-efficiency quick-lift foot pedal. This feature raises the heavy-duty lifting saddle up into contact with the vehicle chassis lifting point instantly, saving valuable time and removing the need for manual handle strokes before engaging the weight. The ergonomically designed 1200 mm handle ensures a firm, non-slip grip, making the 95 kg chassis highly manoeuvrable and remarkably straightforward to direct across uneven workshop surfaces or tightly packed bays.

Unmatched Danish Engineering Built for Hard Work

Proudly designed, tested, and manufactured in Viborg, Denmark, the AC Hydraulic DK60Q floor jack is built strictly from premium-grade steel and premium industrial seal kits. It features a hard-chromium plated hydraulic ram to offer maximum protection against corrosion, chemical spills, and wear. For commercial garages that regularly manage field repairs or operate on unpaved gravel forecourts, the chassis frame can be easily upgraded with optional pneumatic tyres to maximize smooth transit across any demanding outdoor terrain.

Frequently Asked Questions (FAQ)

Is the 6-tonne capacity of the DK60Q certified for industrial environments?
Yes, the DK60Q carries a genuine, certified 6.0 tonne (6,000 kg) safe working load limit. It is engineered specifically to meet European safety standards for intensive daily use within commercial transport fleet garages, agricultural repair centres, and heavy contracting environments.

How does the quick-lift pedal benefit a fast-paced workshop environment?
The quick-lift pedal bypasses the standard handle stroke mechanism to elevate the saddle up to the heavy vehicle’s chassis immediately. This heavily reduces setup times, minimizes technician fatigue, and gets vehicles lifted and serviced much faster.

Does the frame twist or distort when lifting close to its 6,000 kg maximum load?
Not at all. Every DK60Q is constructed in Denmark using high-strength structural steel with a wide, heavily reinforced chassis frame. This premium layout entirely eliminates structural twisting or frame flexing under maximum capacity, providing a rock-solid, stable lift.

What type of lowering mechanism does this floor jack use?
It utilizes a high-precision manual dead man's release valve located inside the handle grip. This allows the mechanic to manage the lowering velocity with total accuracy, ensuring a smooth, slow, and completely predictable descent that eliminates sudden, hazardous drops.

Technical Specifications
