Description

Professional Gearbox Lifting for Irish Workshops

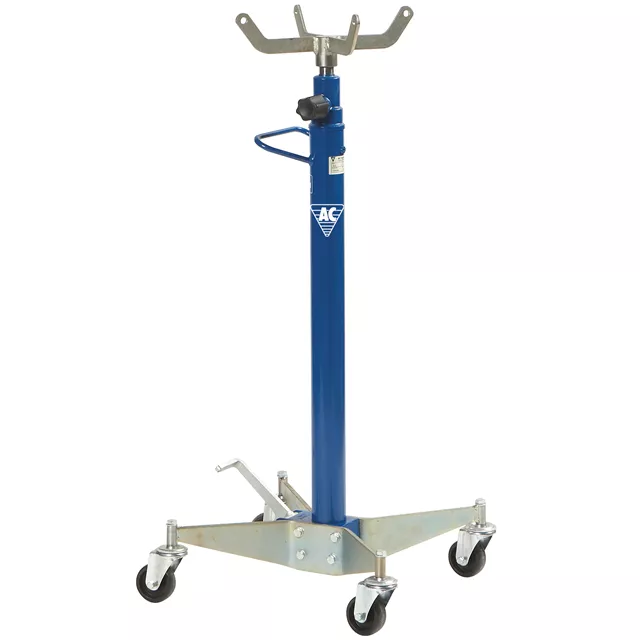

The AC Hydraulic VL6 Transmission Jack is the industry standard for workshops across Ireland and Northern Ireland. Built with Danish engineering excellence, this 600kg capacity transmission jack is designed to handle the removal and refitting of gearboxes, engines, and fuel tanks with ease. Whether you are a home enthusiast or a high-volume commercial garage, the VL6 provides the stability and reliability required for heavy lifting tasks.

Hands-Free Operation and Precision Control

Safety and efficiency are at the core of the VL6 design. The unit features a foot-operated pump, allowing the mechanic to keep both hands on the transmission for perfect alignment. For lowering, the spring-loaded dead man's release ensures a slow, controlled descent, preventing accidental drops and protecting both the technician and the vehicle components.

Sturdy Construction and Easy Maneuverability

The VL6 features a wide base for optimum stability during lifting operations. To ensure it can be moved easily around the workshop, it is fitted with four large swivel castors. These high-quality wheels allow the jack to glide over floor joints and uneven surfaces, even when under load. The galvanised finish on the piston rod ensures a long service life and resistance against the oils and chemicals typically found in automotive environments.

Versatile Design for Cars and Vans

With a minimum height of 1130mm and a maximum height of 1900mm, the VL6 is perfectly suited for use under vehicle lifts. It can be further customized with various saddles and adapters (available separately) to handle specific transmission types, making it one of the most versatile lifting tools in your workshop inventory.

Key Product Features

• 600kg Lifting Capacity: Engineered specifically for the safe removal and installation of transmissions in passenger cars and light commercial vans.
• Hands-Free Operation: Features a pedal-operated hydraulic pump, allowing technicians to use both hands for precise gearbox positioning.
• Dead Man’s Release: Equipped with a spring-loaded release valve that ensures a controlled, stepless lowering for maximum workshop safety.
• Enhanced Stability: Built with a wide base footprint to prevent tipping while handling heavy components under a vehicle lift.
• Superior Maneuverability: Includes four large, robust swivel castors that allow for easy movement across uneven workshop floors.
• Corrosion Resistance: The piston rod and pump unit are finished with a durable coating to withstand the harsh chemicals and oils of a busy garage.
• Versatile Height Range: Adjusts from a minimum height of 1130mm to a maximum extension of 1900mm.

AC Hydraulic Transmission Jack Comparison: VL3 vs VL6 vs VL10

Choosing the right transmission jack depends on the specific weight of the components you handle. While all three models feature identical Danish build quality, their lifting capacities and physical dimensions are tailored for different workshop needs.

Key Differences for Professionals

• Capacity and Application:The VL3 is optimized for standard car gearboxes. The VL6 is the versatile choice for SUVs and small vans, while the VL10 is a heavy-duty unit designed for large commercial vans and 4x4 transmissions.
• Manoeuvrability:The VL3 and VL6 utilize 80mm castors and a 530mm width for tight spaces. The VL10 uses larger 125mm castors and a wider 550mm base to provide the stability required for 1-tonne loads.
• Lifting Reach:The VL10 provides the highest reach at 2000mm, whereas the VL3 and VL6 reach 1965mm. All models feature the same high-quality pedal-operated pump for hands-free positioning.

The Verdict

If you primarily service passenger cars, the VL3 is highly efficient. For a mix of cars and SUVs, the VL6 is the most popular "all-rounder" in Ireland. For workshops specializing in light commercials (Transits, Sprinters, etc.), the VL10 is the required professional standard.

Frequently Asked Questions (FAQ)

What is the lifting capacity of the AC Hydraulic VL6?

The VL6 has a maximum lifting capacity of 600kg (0.6 tonnes), making it ideal for the gearboxes and transmissions of most passenger cars and light commercial vans.

Can this jack be used for tasks other than transmissions?

Yes. Due to its stable design and precise control, the VL6 is also frequently used for mounting fuel tanks, exhaust systems, and shock absorbers.

What kind of warranty comes with the VL6?

AC Hydraulic offers an industry-leading warranty: 10 years on the frame, chassis, and steel structures, and 3 years on the hydraulic system (pump and cylinder).

How high can the VL6 lift?

The unit has a minimum height of 1130mm and can extend to a maximum height of 1965mm, providing ample reach for use under a 2-post or 4-post vehicle lift.

Is the VL6 easy to move when under load?

Yes, it is equipped with four sturdy swivel castors (80mm diameter) designed to provide optimum maneuverability and stability, even when moving heavy components across the workshop floor.

Where is this product manufactured?

The VL6 is designed and manufactured in Denmark by AC Hydraulic, ensuring premium engineering and high-quality European build standards.

What safety features are included?

The jack includes a built-in safety overload valve to prevent lifting beyond capacity and a "dead man’s release" system for controlled, safe lowering.

Technical Specifications
