Description

Industrial Grade Lifting Power for Commercial Fleets and Agriculture

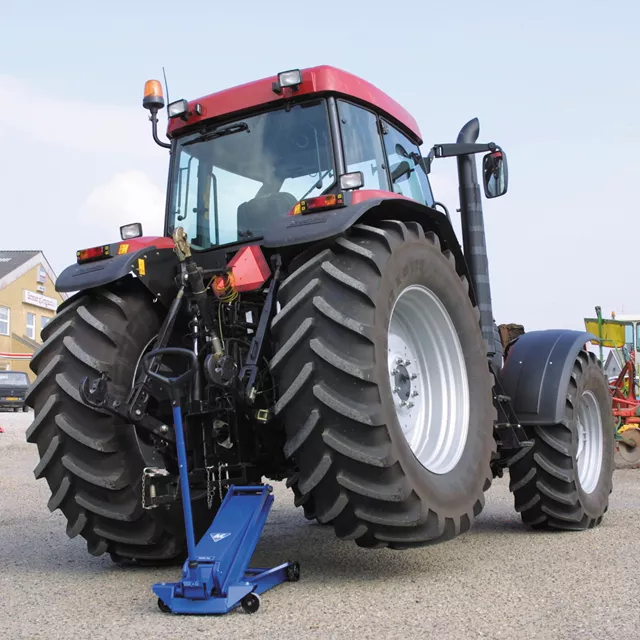

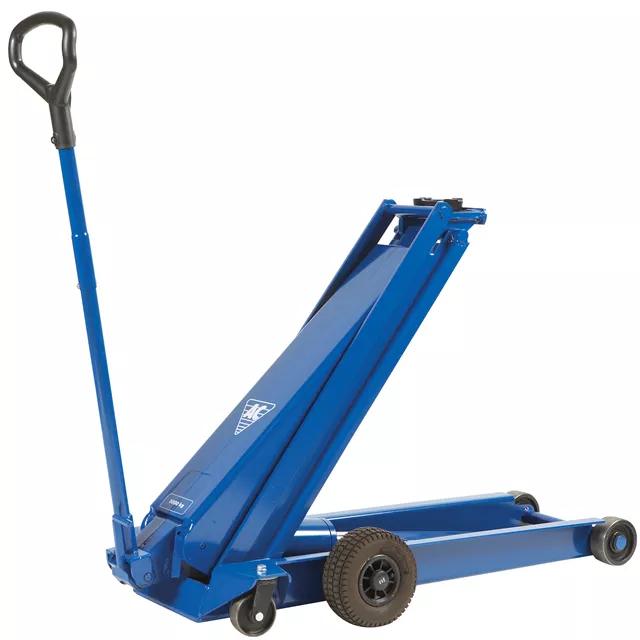

The AC Hydraulic DK50HLQ is the ultimate heavy-duty workshop companion for commercial vehicle garages, agricultural engineers, and plant hire depots throughout Ireland. With a certified lifting capacity of 5.0 tonnes (5,000 kg), this commercial-grade floor jack is explicitly engineered to raise heavy transport trucks, tractors, combines, and demanding earthmoving contractors' machines. Built with an ultra-wide, heavy-gauge steel chassis, it completely eliminates structural flexing under load to provide unwavering stability during high-capacity lifts.

Exceptional Lifting Reach for High-Clearance Machinery

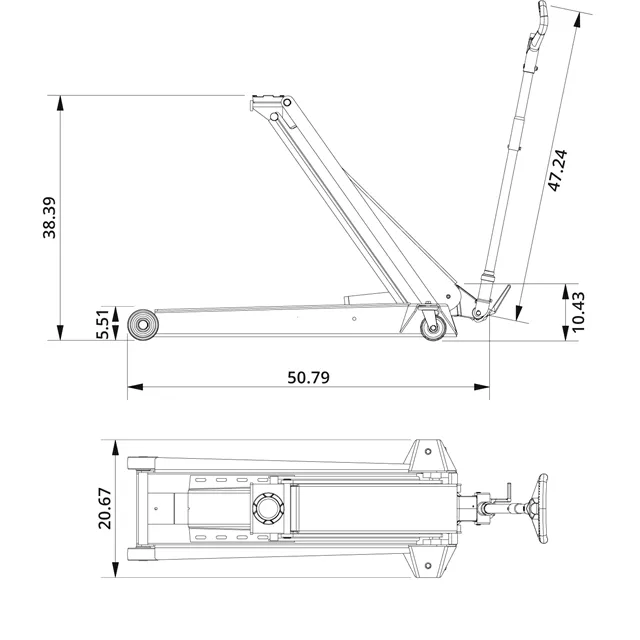

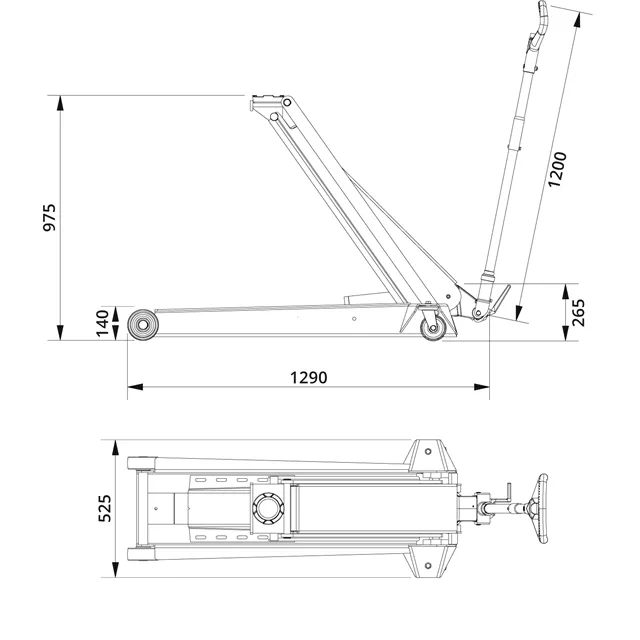

Servicing large-scale machinery requires heavy equipment that can deliver substantial vertical clearance. The AC Hydraulic DK50HLQ answers this demand by offering an incredible maximum lifting height of 975 mm. This extensive reach makes it simple to execute deep underbody work, major axle repairs, track servicing, and heavy tyre changes. Simultaneously, the jack maintains a low minimum profile height of just 140 mm, allowing operators to easily navigate under low-clearance structural points on commercial trailers and trailers.

Advanced Operator Safety and Fluid Lowering Control

When dealing with 5-tonne loads, workshop safety is paramount. The DK50HLQ features a highly accurate manual dead man's release mechanism within the handle assembly, guaranteeing precise, predictable, and slow lowering speeds that eliminate dangerous sudden drops. An integrated built-in safety overload valve acts as a mechanical fail-safe, preventing the hydraulic cylinder from lifting beyond safe operating limits. These industrial safety elements ensure total operator confidence during every single lift.

Ergonomic Efficiency on the Workshop Floor

To reduce technician fatigue and accelerate turnaround times in high-volume commercial bays, the DK50HLQ is equipped with a high-efficiency quick-lift foot pedal. This feature brings the large lifting saddle up to the chassis point instantly, removing the need for manual handle pumping until the load is engaged. The long 1200 mm handle is ergonomically formed to allow easy positioning and positive guidance, allowing the 170 kg unit to be directed precisely around tight workshop bays.

Danish Engineering Built to Last a Lifetime

Manufactured proudly in Denmark, the AC Hydraulic DK50HLQ utilizes premium-grade industrial steel construction and top-tier hydraulic seal kits. Its rugged design ensures complete resistance to the daily punishment of busy industrial workshops. For workshops managing external site repairs or operating on uneven outdoor surfaces, the chassis can also be configured with optional pneumatic tyres to facilitate effortless transport across outdoor yards.

Frequently Asked Questions (FAQ)

What type of machinery is the 5-tonne DK50HLQ designed to lift?
With a certified 5,000 kg capacity and a massive 975 mm lifting height, the DK50HLQ is purpose-built for heavy commercial transport trucks, agricultural tractors, combine harvesters, and civil engineering plant or contractors' machinery across Ireland.

How heavy is the jack itself, and is it easy to maneuver around the garage?
The DK50HLQ is an industrial-grade tool weighing 170 kg, reflecting its robust, high-strength steel construction. Moving it is made remarkably straightforward thanks to its wide chassis layout, heavy-duty wheels, and an ergonomically formed 1200 mm steering handle that provides excellent leverage.

Can this jack be operated safely on gravel yards or unpaved forecourts?
The standard configuration features rigid steel and polyurethane wheels intended for concrete floors. However, for agricultural or plant workshops requiring outdoor use on uneven ground or gravel, the chassis frame is fully compatible with an optional pneumatic tyre upgrade.

What safety features protect the operator when lifting heavy 5-tonne loads?
Safety is paramount: the jack is built with a manual dead man’s release system inside the handle for granular, slow, and precise lowering control. It also features an integrated safety overload valve that automatically prevents the hydraulic mechanism from executing a lift if the load exceeds 5,000 kg.
