EAE E25M Two Post Car Lift – Power, Precision, and Safety

The EAE E25M is an independent two column vehicle lift engineered for garages, commercial workshops, and industrial facilities that need dependable, high-capacity lifting without the hassle of steel ropes or synchronized cabling. Its wireless synchronized hydraulic control system automatically corrects height variations during lifting cycles, keeping both columns perfectly level throughout every lift.

Rated to lift up to 5000kg, the E25M comfortably handles sedans, heavy-duty SUVs, pickup trucks, and vans, making it a versatile choice for busy Irish workshops and home garages alike.

Key Technical Specifications

• Lifting Capacity: 5.0T (5000kg)
• Max Lifting Height: 2000mm
• Min Height: 110mm
• Lifting Time: Approximately 25 seconds
• Motor: Dual power units, 3.5kW x 2
• Drive-Through Width: 2430–3130mm
• Inside Column Width: 2800–3500mm (recommended installation range)
• Overall Height: 2912mm
• Electricity Supply: Configured per customer requirements

Wireless, Independent Column Design

Unlike traditional two post lifts that rely on steel ropes for synchronization, the E25M uses a wireless synchronized hydraulic control system. Each column operates independently, reducing mechanical wear and simplifying installation, while the system automatically corrects any height variation between columns as it lifts.

Smart Control and Monitoring

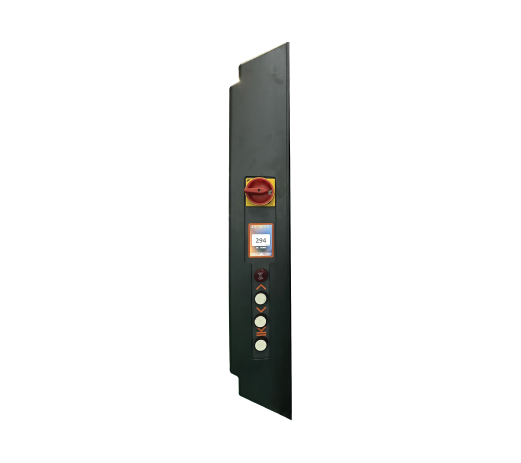

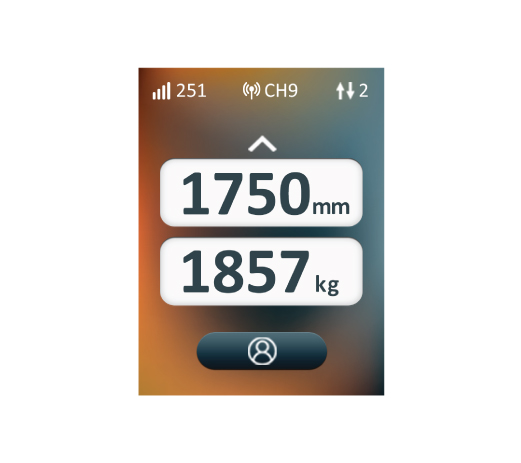

The E25M features a touchscreen HMI display for real-time height monitoring and system setup, with an optional weight indicator available. A dedicated height limit switch and displacement sensor work alongside an intelligent control system to ensure accurate, consistent lifting on every cycle. All electrical operation runs on a 24V safe control system.

Built-In Safety Features

• Dual safety protection against hydraulic leakage via mechanical latch and anti-burst hydraulic valve
• Smart latch sensors that determine whether to lower directly or raise before descent
• Low-position stop with audible alarm for final travel
• Automatic engaging and disengaging swing arm locking device — engages when raised, disengages at the lowest position
• CE certified for compliance and peace of mind

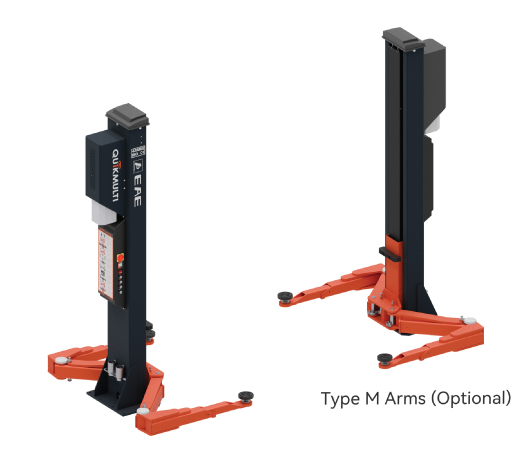

Four 3-Stage Arms and Optional Type M Arms

The E25M is fitted with four 3-stage lifting arms as standard, offering flexible pickup point positioning for a wide range of vehicle types. For workshops handling vehicles with extended or unusual wheelbases, optional Type M Arms are available to extend wheelbase compatibility further.

Efficient, Low-Maintenance Motor

Powered by dual 3.5kW motors housed in an aluminium shell, the E25M dissipates heat rapidly for consistent performance even during repeated, heavy-duty use — delivering a full lift from bottom to top in approximately 25 seconds under rated load.

Who Is the EAE E25M For?

The E25M is suited to home users seeking a professional-grade home garage lift, as well as commercial garages and industrial workshops that need a durable, high-capacity two post lift for daily use. Its flexible installation width (recommended 2800–3500mm) allows it to be configured to suit a range of installation spaces.

Note: Max lifting height is measured with adjustable screw pads in the highest position. Product shown may include optional equipment; actual appearance may differ slightly.

Key Features

• Rated lifting capacity of 5000kg (5.0T) — suitable for sedans, heavy-duty SUVs, pickup trucks, and vans
• Wireless synchronized hydraulic control system with automatic height correction
• Independent columns — no steel ropes
• Maximum lift height of 2000mm for greater under-vehicle workspace
• Dual 3.5kW power units — full lift in approximately 25 seconds
• Touchscreen HMI display with optional weight indicator
• 24V safe control system
• Dual hydraulic safety protection (mechanical latch + anti-burst valve)
• Automatic swing arm locking device
• Four 3-stage arms, with optional Type M arms available
• CE certified
• Flexible installation width: 2800–3500mm recommended

Technical Specifications

* Machine shown with optional equipment. Actual product appearance may differ.
* Max. Lifting height is measured with adjustable screw pads in highest position.
